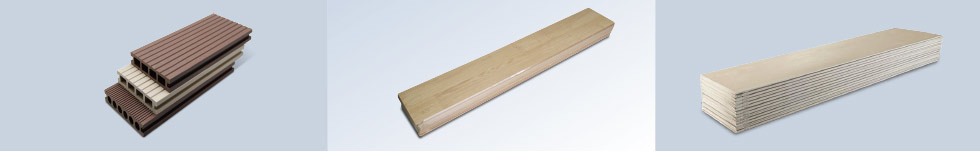

Long products such as flooring boards, PVC profile, aluminum profile, etc.
BMD-800E
Automatic Bottom Lap Sealer & Shrink Wrapping Machine
Features:
1. BMD-800E is a fully automatic shrink packaging machine including bottom lap sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically, especially for packing flooring boards, PVC profile, aluminum profile, etc.
2. Adopt durable “u” shape alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coats supported by four columns, the sealing line is very strong and can use thicker PE film for heavy products.
3. The machine use single layer PE film and form a tube shape to pack the products fully close.
4. Durable shrink tunnel with quality high temperature wires and connectors.
4. Adopt Siemens PLC and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.
| BMD-800E | |
| Sealing type | botlom lap sealing |
| Power supply | 380V/50-60Hz/3phase |
| Product size | width+height≤400mm |
| Sealing height | ≤200mm |
| Conveyor system | straight conveyor |
| Packing capacity | depens on product length |
| Film type | polyethylene (PE) firm |
| Max film size | 1000mm (width) x 280mm (outer diameter) |
| Power consumption | max. 22kw |
| Tunnel conveyor | chains with silicon coated rods |
| Working height | 850-900mm |
| Air pressure | ≤0.5MPa(5 bar) |
| Sealing system | Durable“U”shape alloyed sealing knife and saw teeth cutting knife with anti-stick teflon coats |
| Operating panel | Siemens colorful touch screen, PLC, omron temperature controller |
| Machine material | carbon steel |
| Weight | 1200kg |
