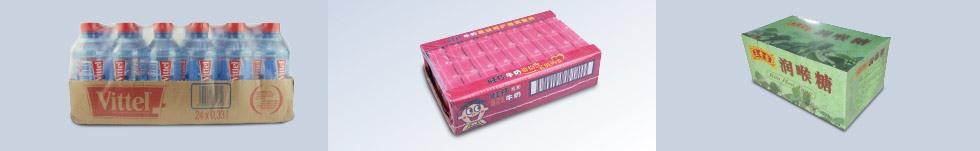

Cartons and big bottles with trays such as drinking bottles, purified water bottles, beer bottles, etc.
BMD-800B

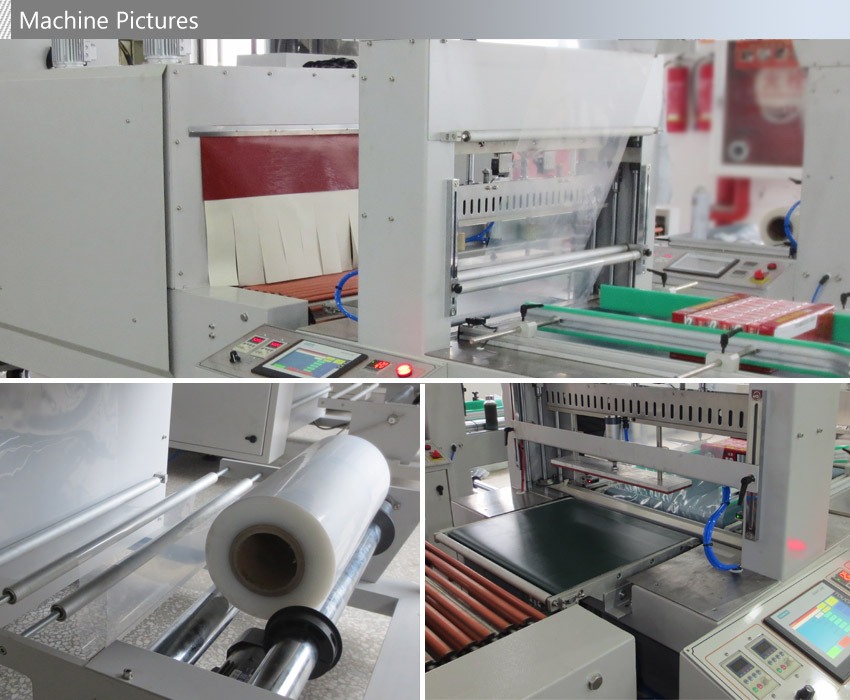

Automatic Sleeve Sealer & Shrink Wrapping Machine


Features:
1. BMD-800B is a fully automatic shrink packaging machine including sleeve sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. it is widely used in food, pharmaceutical, cosmetics, printing, hardware, and other industry.
2. Adopt durable “u” shape alloyed sealing knife and saw teeth cutting knife with anti-stick teflon coats supported by four columns, the sealing line is very strong and can use thicker pe film for heavy products.
3. Only adjust the machine when product size change.
4. Durable shrink tunnel with quality high temperature wires and connectors.
5. Adopt siemens plc and colorful touch screen, omron temperature controller, timer, relay, switch, and sensor.
6. Optional output roller table or conveyors are available.
7. Optional safety cover is available.

BMD-800B | |
Sealing type | sleeve sealing |
Power supply | 380V/50-60Hz/3phase |
Max product size | 420(L) x 350(W) x 300(H)mm |
Packing capacity | 8-18 packs per minute |
Film type | polyethylene (PE) film |
Max film size | 600(width) x 280mm(outer diameter) |
Power consumption | max. 20.5kw |
Tunnel oven size | entrance 600(W) x 400(H) mm |
Tunnel conveyor speed | variable, controlled by frequency converter |
Tunnel conveyor | chains with silicon coated rods |
Working height | 850-900mm |
Air pressure | ≤0.5MPa(5 bar) |
Sealing system | Durable“U”shape alloyed sealing knife and saw teeth cutting knife with anti-stick teflon coats |
Operating panel | Siemens colorful touch screen, PLC, omron temperature controller |
Machine material | carbon steel |
Weight | 1000kg |
