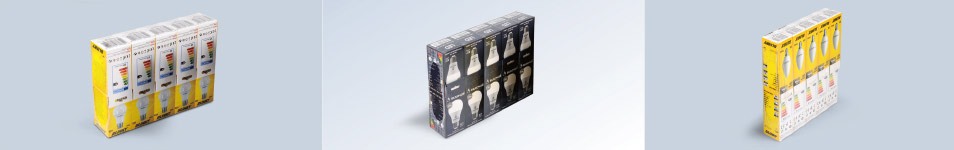

Boxes with hanger like lamp box
BMD-750D
Automatic Sleeve Sealer & Shrink Wrapping Machine for Lamp Box
Features:
1. BMD-750D is a fully automatic shrink wrapping machine including sleeve sealer and shrink tunnel especially for packing boxes with hanger like lamp boxes.
2. This machine can collate boxes in multi rows automatically. It can connect cartoning machine to receive bottles and make production line unmanned.
3. Special durable alloyed sealing knife with anti-stick Teflon coats supported by four columns makes sealing strong and has better performance of heat conduction.
4. Rows can be set on the touch screen. When product size changes only adjust packing size on the machine without changing any molds and parts.
5. Adopt siemens plc and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.
6. Compact machine structure with high efficiency can save space.
| BMD-750D | |
| Sealing type | sleeve sealing |
| Power supply | 380V/50-60Hz/3phase |
| Max product size | 380(L) x 200(W) x 200(H)mm |
| Packing capacity | 6-12 packs per minute |
| Film type | polyethylene (PE) film |
| Max film size | 500(width) x 280mm(outer diameter) |
| Power consumption | max. 12kw |
| Tunnel oven size | entrance 1250(L) x 520(w) x 220(H)mm |
| Tunnel conveyor speed | variable, 40m/min |
| Tunnel conveyor | Teflon mesh belt |
| Working height | 850-900mm |
| Air pressure | ≤0.5MPa(5 bar) |
| Sealing system | Special durable alloyed sealing knife with anti-stick Teflon coats |
| Operating panel | Siemens colorful touch screen, PLC, omron temperature controller |
| Machine material | carbon steel |
| Weight | 750kg |
