BMD-750C

Automatic Sleeve Sealer & Shrink Wrapping Machine for Tape Rolls, Paper Rolls

Different kinds of tapes like BOPP tape, mask tape, electrician tape, paper rolls like label roll, wallpaper roll.

Features:

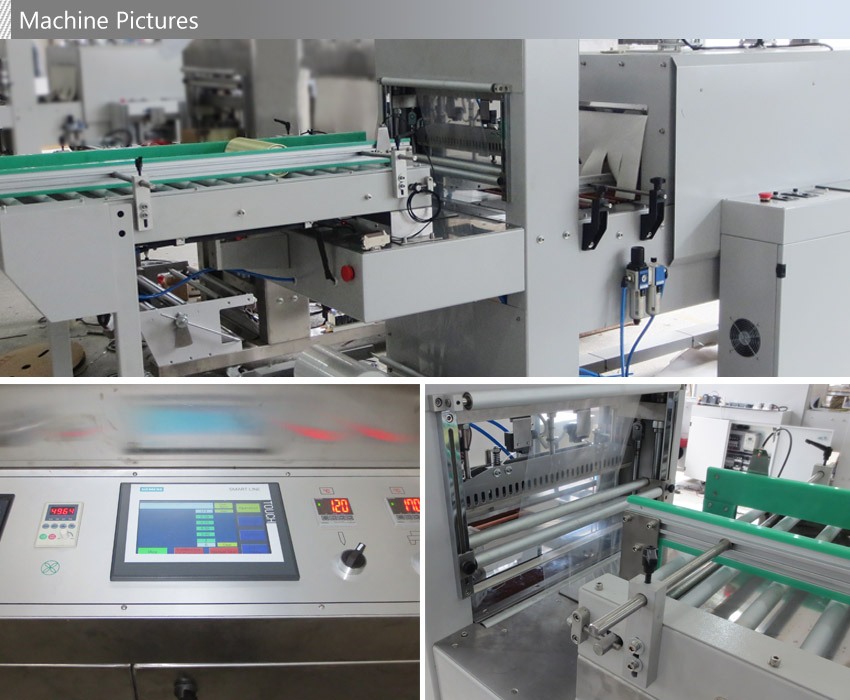

1. BMD-750C is a fully automatic shrink wrapping machine including sleeve sealer and shrink tunnel which can packing different kinds of tapes, paper rolls and cylindrical products.
2. This machine can collate and pack tapes in tower or in flat. it can connect tapes production line.
3. Special durable alloyed sealing knife with anti-stick teflon coats supported by four columns makes sealing strong and has better performance of heat conduction.
4. Adopt siemens plc and colorful touch screen, omron temperature controller, timer, relay, switch, and sensor.
5. Compact machine structure with high efficiency can save space.

BMD-750C
Sealing typesleeve sealing
Power supply380V/50-60Hz/3phase
Max product size380(L) x 200(W) x 200(H)mm
Packing capacity8-18 packs per minute
Film typepolyethylene (PE) film
Max film size500(width) x 280mm(outer diameter)
Power consumptionmax. 12kw
Tunnel oven sizeentrance 1250(L) x 520(w) x 220(H)mm
Tunnel conveyor speedvariable, 40m/min
Tunnel conveyorchains with silicon coated rods
Working height850-900mm
Air pressure≤0.5MPa(5 bar)
Sealing systemSpecial durable alloyed sealing knife with anti-stick Teflon coats
Operating panelSiemens colorful touch screen, PLC, omron temperature controller
Machine materialcarbon steel
Weight700kg
