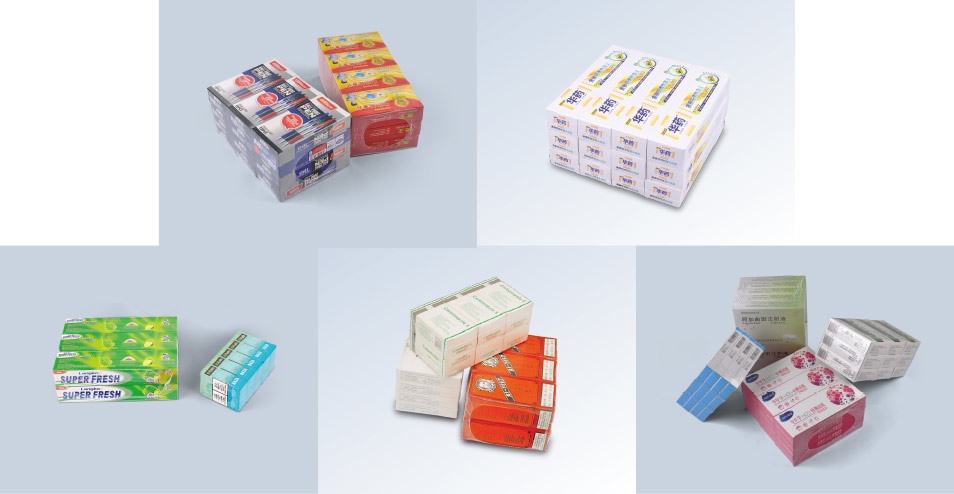

Auto stack and shrink pack boxes in multi-row and multi-layer such as medicine boxes, cosmetics box, stationary boxes. It can work with cartoning machine.
BMD-600B/750B
Automatic Sleeve Sealer & Shrink Wrapping Machine
1. BMD-600B is a fully automatic shrink packaging machine including sleeve sealer and shrink tunnel which can feed products, collating, seal and cut film and shrink film bag automatically. it is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.
2. This machine can collate cartons in multi rows and layers automatically. it can connect cartoning machine to receive cartons and make production line unmanned.
3. Special durable alloyed sealing knife with anti-stick Teflon coats supported by four columns makes sealing strong and has better performance of heat conduction.
4. Rows and layers can be set on the touch screen. when carton size changes only adjust packing size on the machine without changing any molds and parts.

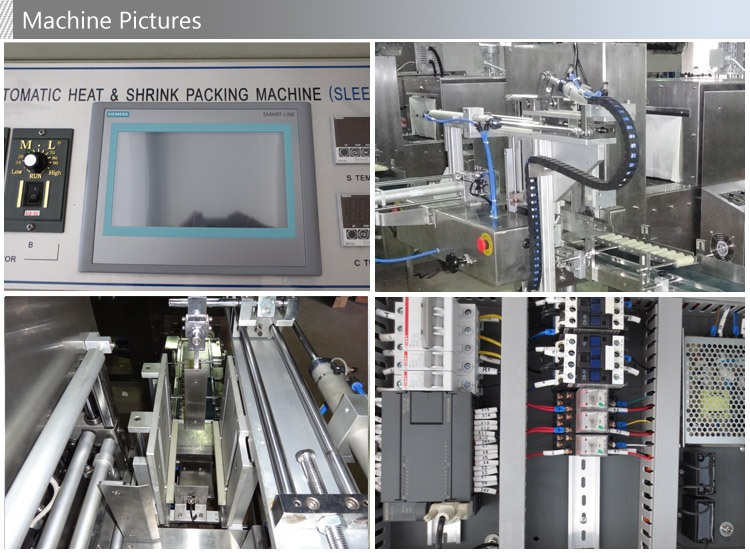

5. Adopt siemens plc and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.
6. Compact machine structure with high efficiency can save space.
7. Optional fast stacker for multi layers carton.
| BMD-600B | BMD-750B | |
| Sealing type | sleeve sealing | sleeve sealing |
| Power supply | 380V/50-60Hz/3phase | 380V/50-60Hz/3phase |
| Max product size | 280(L) x 180(W) x 150(H)mm | 380(L) x 200(W) x 200(H)mm |
| Packing capacity | 6-18 packs per minute | 6-15 packs per minute |
| Film type | polyethylene (PE) film | polyethylene (PE) film |
| Max film size | 350(width) x 280mm (outer diameter) | 500(width) x 280mm (outer diameter) |
| Power consumption | max. 8kw | max. 12kw |

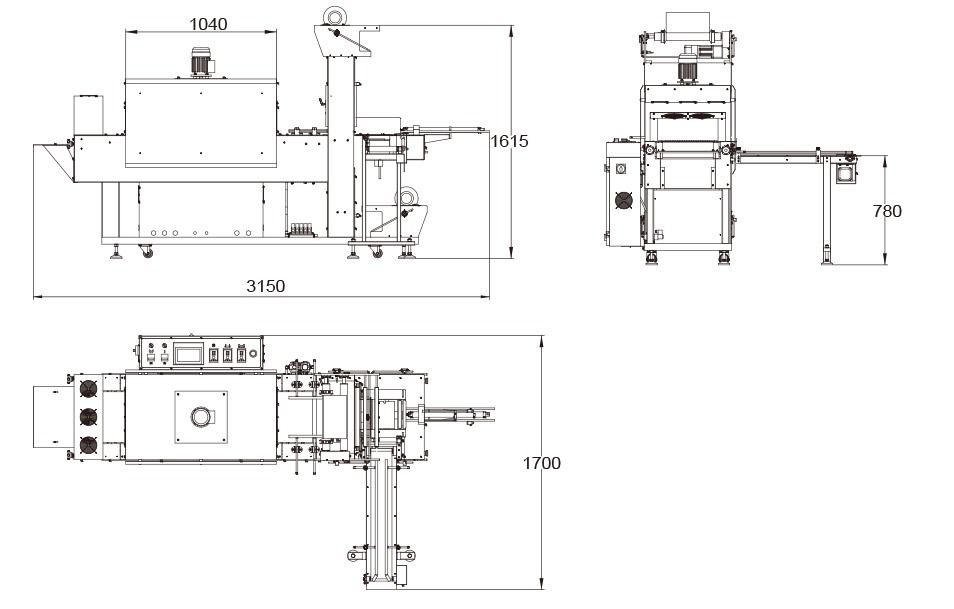

| Tunnel oven size | entrance 1040(L) x 355(w) x 220(H)mm | entrance 1250(L) x 520(w) x 280(H)mm |
| Tunnel conveyor speed | variable | variable |
| Tunnel conveyor | steel mesh conveyor, Teflon mesh conveyor , roller conveyor | steel mesh conveyor, Teflon mesh conveyor , roller conveyor |
| Working height | 850-900mm | 850-900mm |
| Air pressure | ≤0.5MPa(5 bar) | ≤0.5MPa(5 bar) |
| Sealing system | Special durable alloyed sealing knife with anti-stick Teflon coats | Special durable alloyed sealing knife with anti-stick Teflon coats |
| Operating panel | Siemens colorful touch screen, PLC, omron temperature controller | Siemens colorful touch screen, PLC, omron temperature controller |
| Machine material | stainless steel | stainless steel |
| Weight | 600kg | 700kg |
