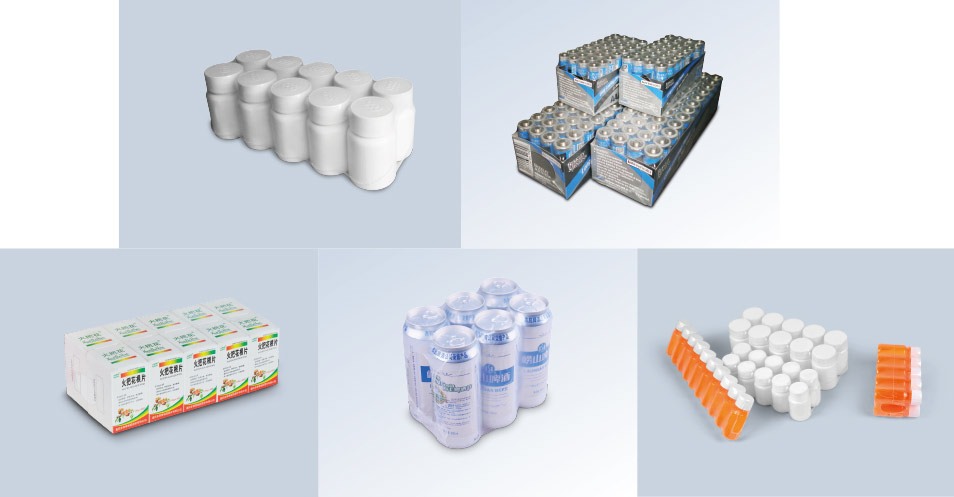

Bottles, tins, boxes and tapes in multi-row. It can be connected and work with auto labeling or cartoning machine.
Automatic Sleeve Sealer & Shrink Wrapping Machine
1. BMD-600A is a fully automatic shrink packaging machine including sleeve sealer and shrink tunnel which can feed products, collating, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.
2. This machine can collate bottles in multi rows automatically. It can connect cartoning machine to receive bottles and make production line unmanned.
3. Special durable alloyed sealing knife with anti-stick Teflon coats supported by four columns makes sealing strong and has better performance of heat conduction.
4. Rows can be set on the touch screen. When product size changes only adjust packing size on the machine without changing any molds and parts.

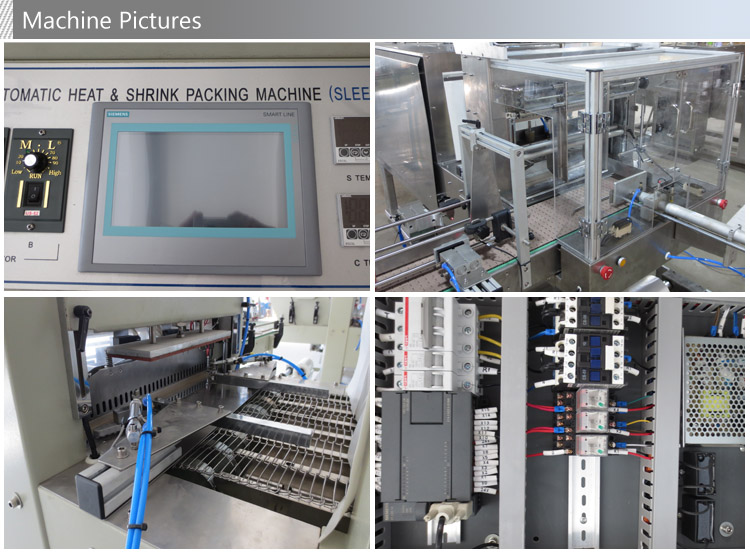

5. Adopt siemens plc and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.
6. Compact machine structure with high efficiency can save space.
|Sealing type||sleeve sealing||sleeve sealing|
|Max product size||280(L) x 180(W) x 150(H)mm||380(L) x 200(W) x 200(H)mm|
|Packing capacity||10-20 packs/min||10-20 packs/min|
|Film type||polyethylene (PE) film||polyethylene (PE) film|
|Max film size||350(width) x 280mm(outer diameter)||500(width) x 280mm(outer diameter)|
|Power consumption||max. 8kw||max. 12kw|

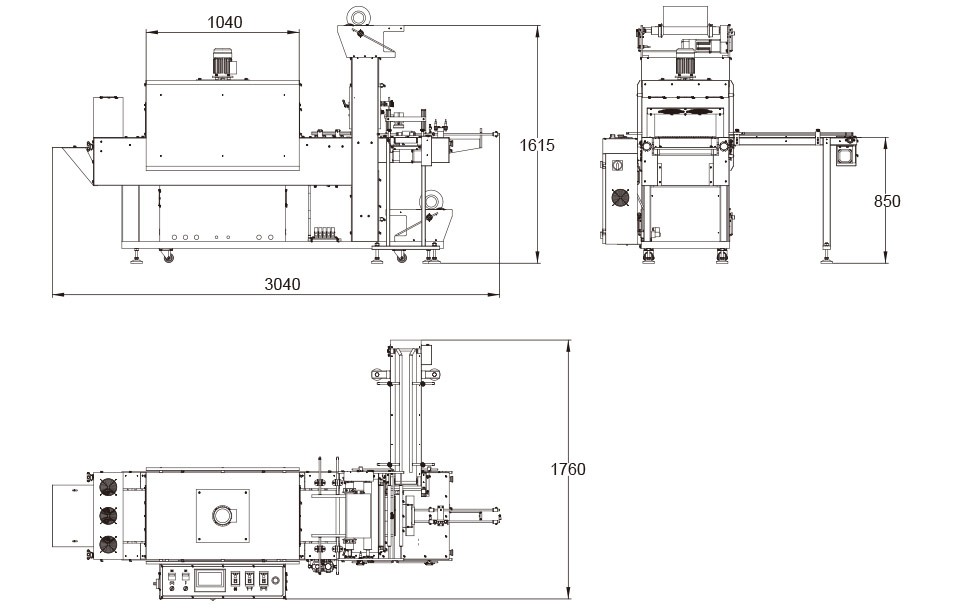

|Tunnel oven size||entrance 1040(L) x 355(w) x 220(H)mm||entrance 1250(L) x 520(w) x 280(H)mm|
|Tunnel conveyor speed||variable||variable|
|Tunnel conveyor||steel mesh conveyor, Teflon mesh conveyor , roller conveyor||steel mesh conveyor, Teflon mesh conveyor , roller conveyor|
|Air pressure||≤0.5MPa(5 bar)||≤0.5MPa(5 bar)|
|Sealing system||Special durable alloyed sealing knife with anti-stick Teflon coats||Special durable alloyed sealing knife with anti-stick Teflon coats|
|Operating panel||Siemens colorful touch screen, PLC, omron temperature controller||Siemens colorful touch screen, PLC, omron temperature controller|
|Machine material||stainless steel||stainless steel|
