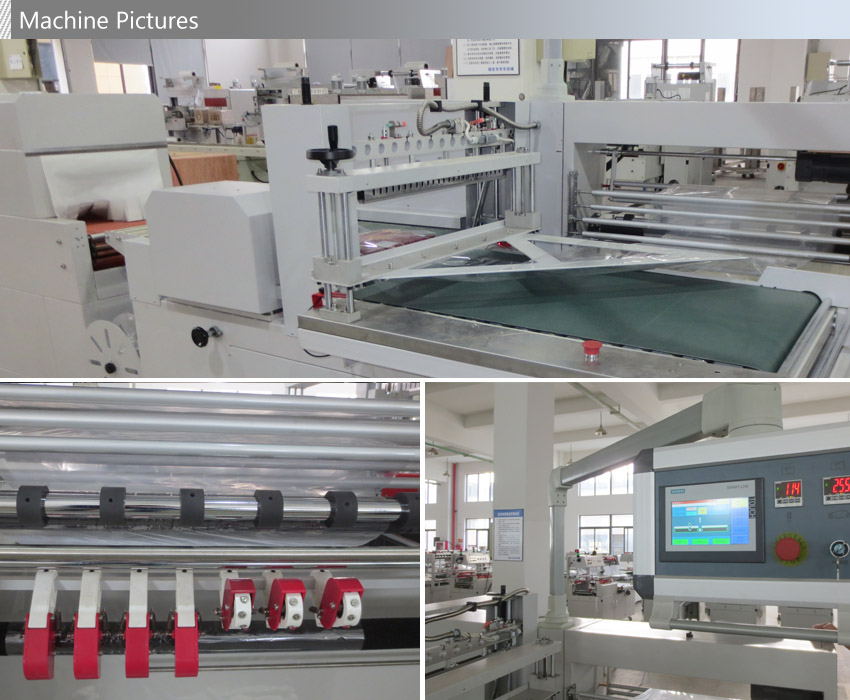

Automatic Big Side Sealer & Shrink Tunnel

Longer and wider products such as flooring boards, cake tray, carpet roll, foam roll, etc.

1. GB-600 is a fully automatic shrink wrapping machine including side sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. it is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.
2. This machine can pack longer and wider products.
3. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.
4. Side sealing line can be adjusted in the center of product or other desired position.
5. Film perforating wheels can be adjusted or removed easily.
6. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. Packing length can be detected by the sensor automatically.
7. Operate easily and conveniently by moveable control panel.
8. Adopt Siemens PLC and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.
9. A pair of photoelectric switch in vertical for thin products.
10. Optional sensor for transparent products.

Sealing typeL-bar sealing
Power supply380V/50-60Hz/3phase
Packing capacity 15-35 packs per minute (depends on product size)
Sealing height≤125 mm
Packing width≤350 mm
Product sizewidth+height≤400 mm
length+height≤480 mm
Film typecenter-folded polyolefin (POF) film
Max film size530mm (width) x 280mm(outer diameter)
Power consumption1.5 kW
Working height780-850 mm
Air pressure≤0.5MPa (5 bar)
Sealing systemSpecial durable alloyed sealing knife with anti-stick Teflon coats
Machine materialcarbon steel
Weight 300kg
Power supply380V/50-60Hz/3phase
Oven size 1200mm(L), entrance 400(W) x 220(H) mm
Conveyor speedvariable
Conveyor chains with rotating silicon coated rods
Power consumption7kW
Working height780-850 mm
Machine materialcarbon steel
