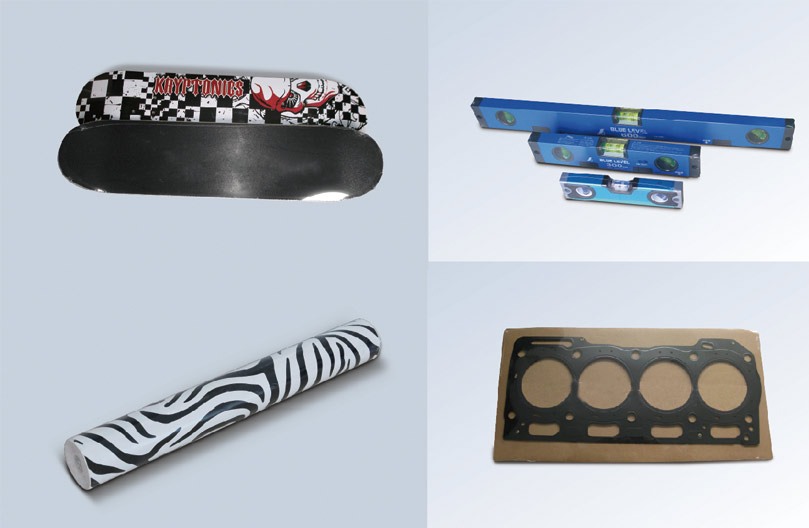

Long products such as flooring boards, paper rolls, gaskets, etc
GB-350
Automatic Side Sealer & Shrink Packaging Machine
Features:
1. GB-350 is a fully automatic thermal shrink packaging machine including side sealer and heat shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.
2. This machine can pack long products. There is no limit of product length because of side sealing system.
3. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.
4. Side sealing line can be adjusted in the center of product or other desired position.
5. Film perforating wheels can be adjusted or removed easily.
6. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. Packing length can be detected by the sensor automatically.
7. Operate easily and conveniently by moveable control panel.
8. Adopt Siemens PLC and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.
9. A pair of photoelectric switch in vertical for thin products.
10. Optional sensor for transparent products.
| GB-350 | |
| Sealing type | 380V/50-60Hz/3phase |
| Sealing height | ≤200 mm |
| Sealing width | ≤350 mm |
| Product size | width+height≤400mm |
| Product length | infinite |
| Packing capacity | depends on product length |
| Film type | center-folded polyolefin (POF) film or polyethylene(PE)film |
| Max film size | 580mm(width) x 280mm(outer diameter) |
| Power consumption | 10.5kW |
| Tunnel oven size | depends on product length |
| Tunnel conveyor speed | variable |
| Tunnel conveyor | chains with rotating silicon coated rods |
| Working height | 780-820 mm |
| Air pressure | ≤0.5MPa |
| Sealing system | Special durable alloyed sealing knife with anti-stick Teflon coats |
| Operating panel | Siemens colorful touch screen, PLC, Omron temperature controller |
| Weight | 600kg |
