BS-250A

Automatic Compact L-bar Sealer & Shrink Wrapper

Video

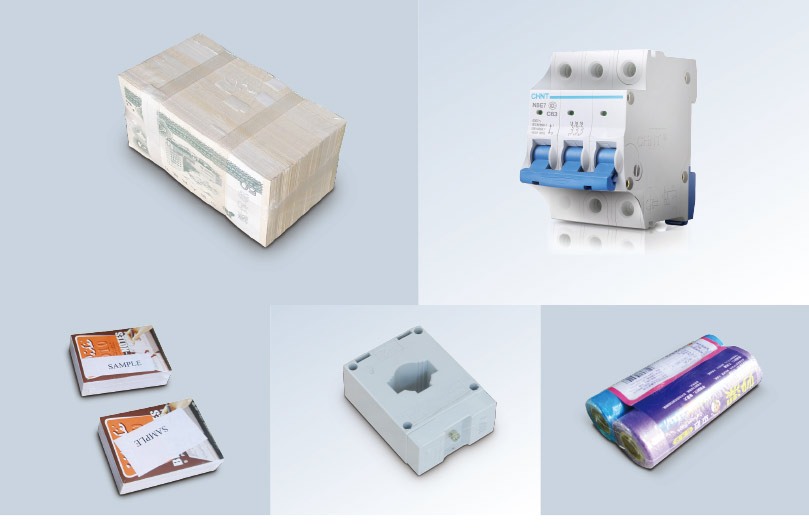

Small items like carton, bank notes, brake pad, electric component, books, etc

Features:

1. BS-250A is a fully automatic heat shrink wrapper including L sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically.

2. The sealing is driven by servo motor, sealing quickly and without any noise.

3. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.

4. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. Packing length can be detected by the sensor automatically.

5. Adopt Siemens PLC, touch screen and Omron brand parts such as temperature controller, timer, relay, switch, and sensor.

6. A pair of photoelectric switch in vertical for thin products.

BS-250A
Sealing typeL-bar sealing
Power supply380V/50-60Hz/3phase
Packing capacity 15-45 packs per minute (depends on product size)
Sealing height≤80 mm
Packing width≤200 mm
Product size width+height≤250 mm
length+height≤330 mm
Film type center-folded polyolefin(POF)film
Max film size 380mm(width)x280mm(outer diameter)
Power consumptionmax. 6kW
Working height 780-850 mm
Oven size 1200(L) x 300(W) x 165(H)mm
Conveyor speedvariable
Conveyorchains with rotating silicon coated rods
Machine material carbon steel
Weight390kg
