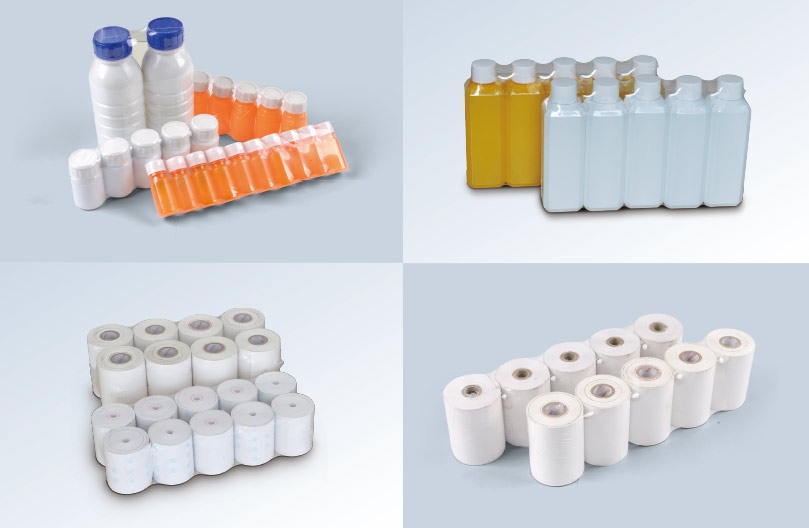

The machine with collator can collate pesticide bottles, thermal sensitive paper rolls and cash register paper rolls in a group and shrink pack them automatically.
Automatic L Sealer & Shrink Packaging Machine with Collator for Small Bottles or Paper Rolls
1. BS-400LA+BMD-450C is a fully automatic shrink packaging machine including L sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.
2. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.
3. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. Packing length can be detected by the sensor automatically.
4. Different products with different sizes can be packed together as promotional package.
5. Adopt Omron brand parts such as temperature controller, timer, relay, switch, and sensor.
6. A pair of photoelectric switch in vertical for thin products.
7. Optional closing conveyor for small products.
8. Optional sensor for transparent products.
|10-25 packs per minute (depends on product size)
|center-folded polyolefin (POF) film
|Max film size
|530mm (width) x 280mm(outer diameter)
|≤0.5MPa (5 bar)
|Special durable alloyed sealing knife with anti-stick Teflon coats
|1200mm(L),entrance 400(W) x 220(H) mm
|Teflon mesh conveyor
